Ice Vending Machines

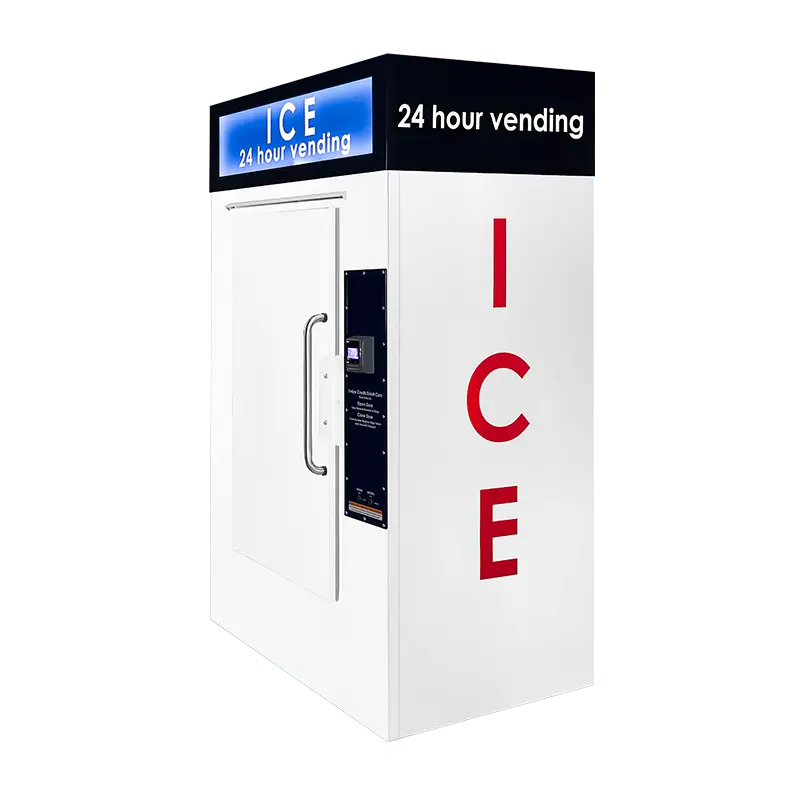

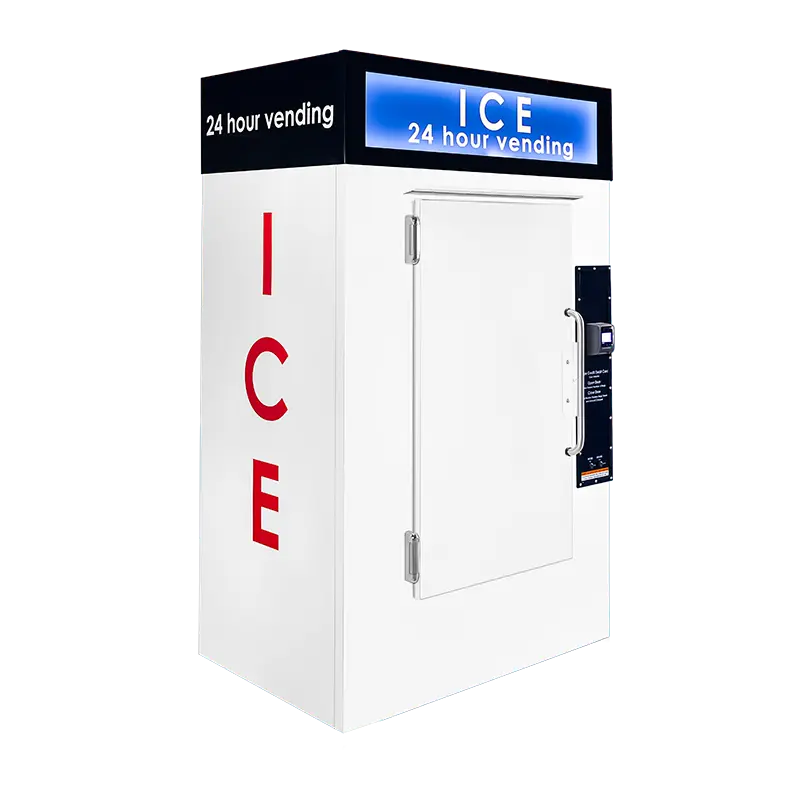

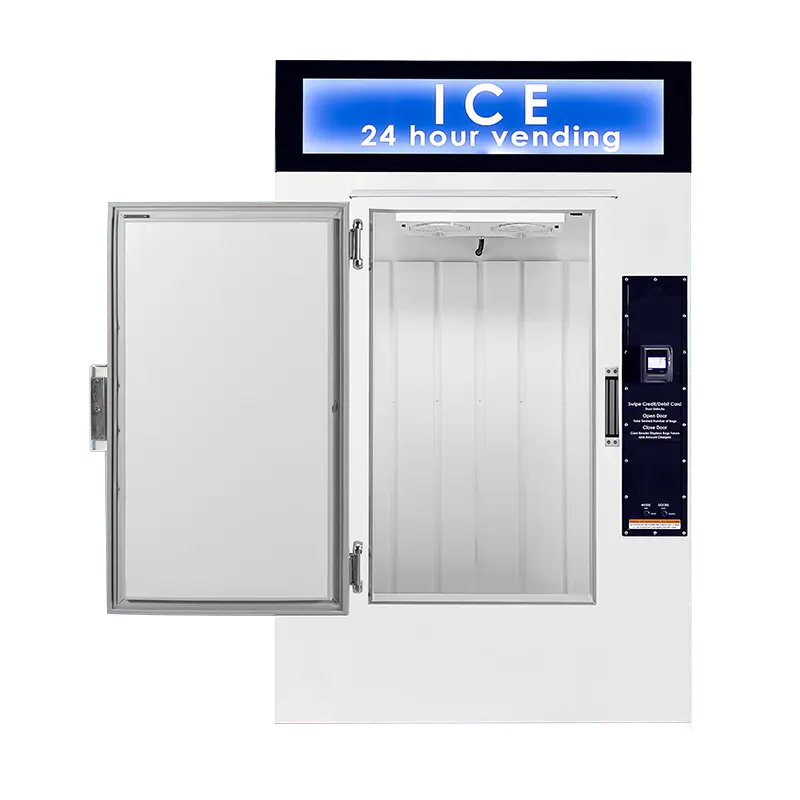

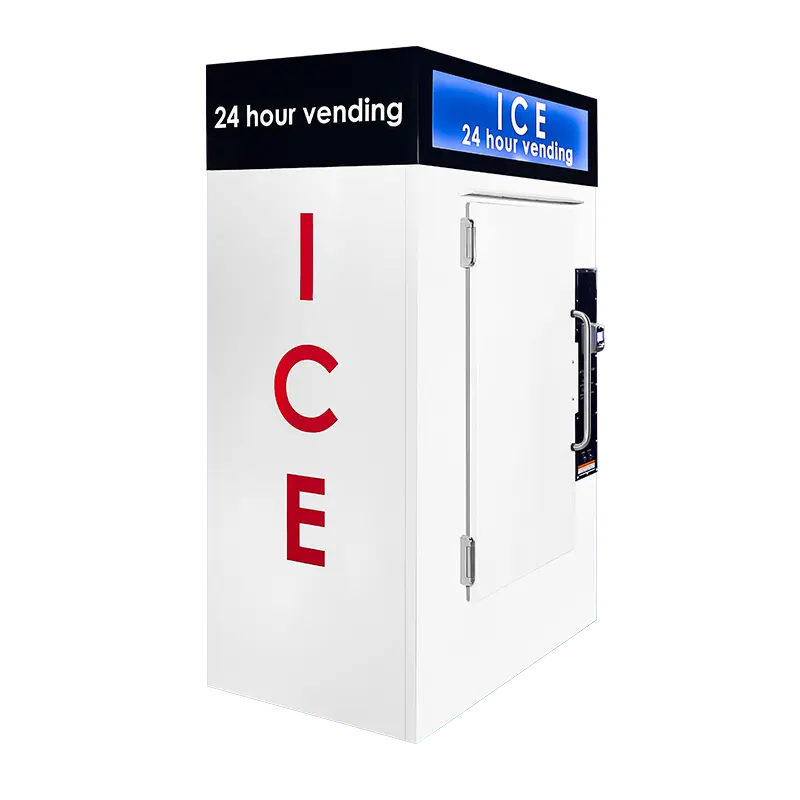

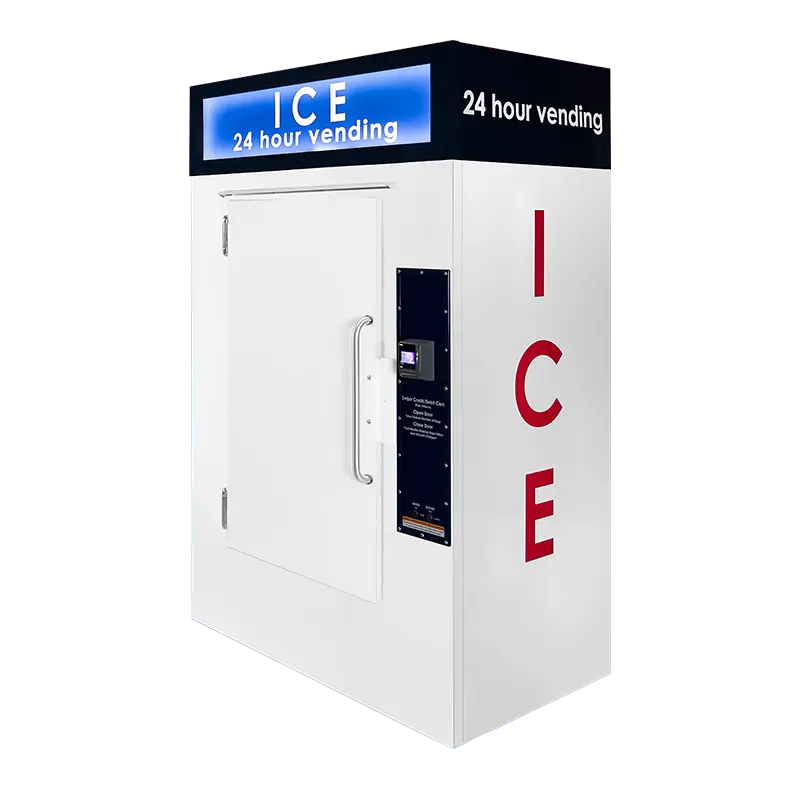

Model VM40

Interior Capacity: 100 7 lb. Bags | 40 20 lb. Bags
Dimensions (W" x D" x H"): 47 x 30 x 78.5
Add to Quote
Models & Cooling Types
Auto Defrost – R290
L040UASVP
Exterior Dimensions (WxDxH)
47 x 30 x 78.5
Interior Capacity
40
Door Opening (Wx H)
27 x 46
Bag Size
Auto Defrost
Cold Wall
7 lb. Bags
100
20 lb. Bags
40
Operating Temperature
16°F - 24°F
Refrigerant
R290
Compressor HP
1/3
Product Weight
Auto Defrost (lbs.)
Cold Wall (lbs.)
Standard Voltage (V/Hz)
115 / 60
Alternate Voltage
Upon Request
Min. Circuit Required (Amps)
15
Cooling Type
Amps
Auto Defrost
6.3
Cold Wall
DOE Compliant
Yes
CARB Compliant
Upon Request
NSF
Upon Request
Certifications
UL, cUL, CE

Model VM40

Videos

Learn more about Leer Ice Vending Machines, Indoor Ice Vending Machines, Outdoor Ice Vending Machines construction, and cooling types.

Ice Vending Machine Overview – VM40 & VM85

From Factory Floor to the Front of the Store – How An Ice Merchandiser is Made!

Model VM40

Product Literature

Spec sheets, warranty information, certifications, and other documents to help review or specify this model.

VM40 Product Spec Sheet

Warranty Quick Reference Guide

International Ice Vending Machine Warranty

Ice Vending Machine Warranty

Ice Vending Machine Certifications, Approvals, Agency Listings

Model VM40

User Manuals

Owner and operating manuals for Leer Ice Vending Machines, Indoor Ice Vending Machines, Outdoor Ice Vending Machines

R290 Ice Vending Machine User Manual (115v & 230v)

Ice Vending Machine User Manual

R290 Ice Vending Machine User Manual (115v & 230v)

Ice Vending Machine User Manual

Model VM40

Support Documents

Maintenance guides, refrigerant information, troubleshooting resources, and other materials that support long-term operation.

Automatic Defrost vs Cold Wall Manual Defrost

Tech Doc: R290 Eco-Friendly FAQs

Tech Doc: R290 Service & Repair Guidelines

Tech Doc: Refrigerant Comparison – R290 vs. R448a

Engineering Case Study: Refrigerant Comparison R290 vs. R404a

Ice Vending Machine Fee Explanation

Ice Vending Machine Setup Guide

Model VM40

Drawings

View dimensional drawings for footprint, door opening, and placement planning.
