Multi-Temp Trailers

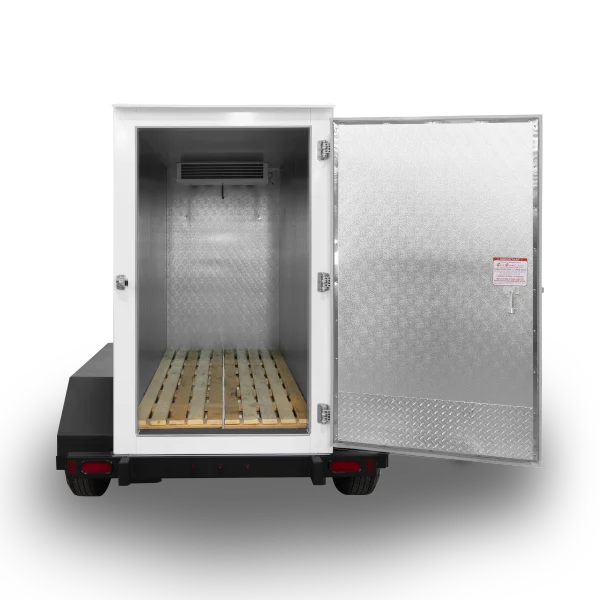

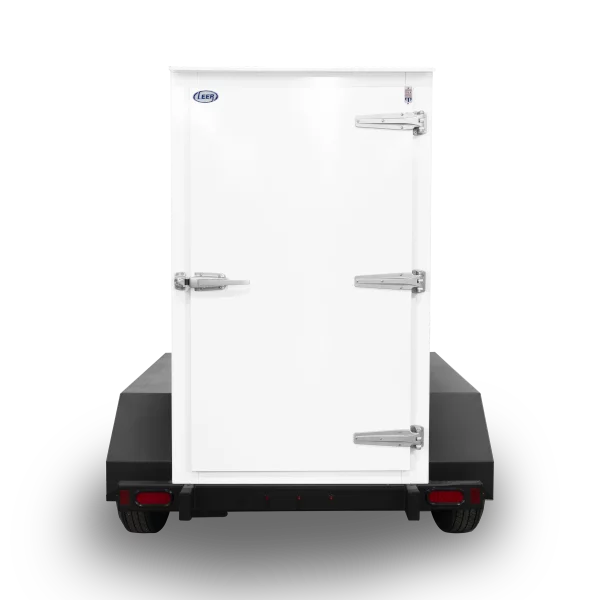

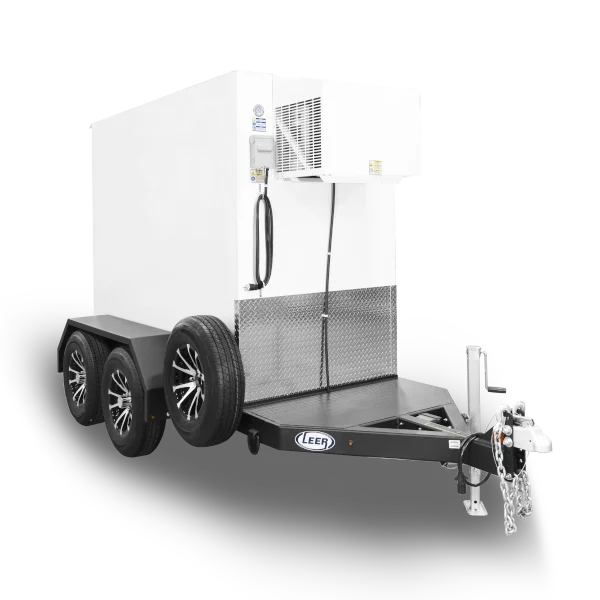

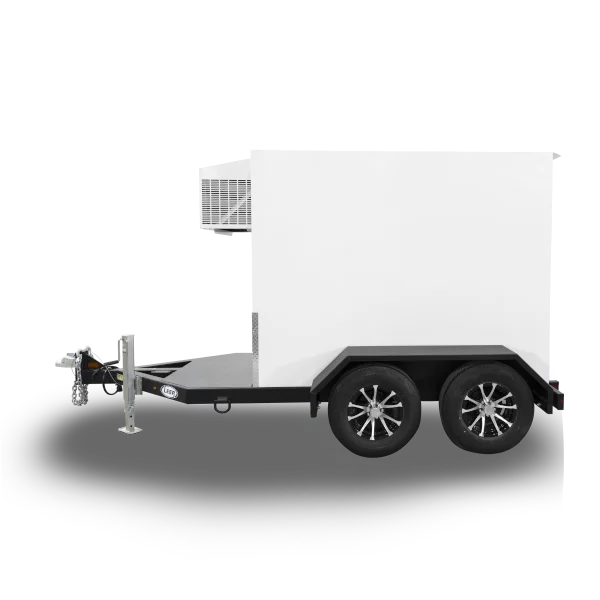

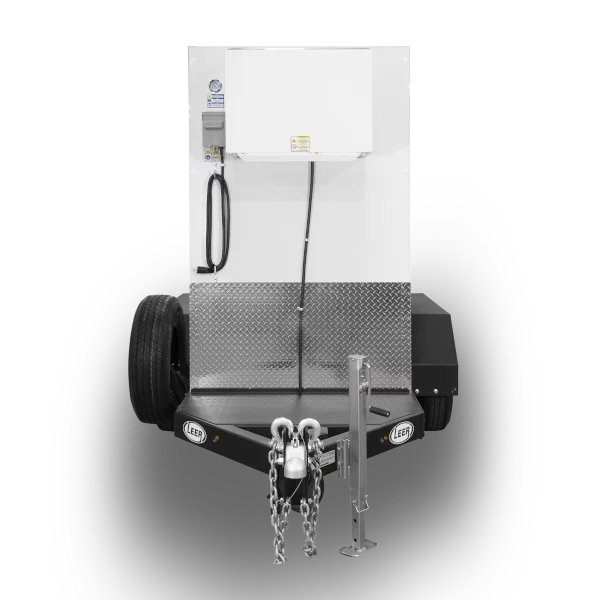

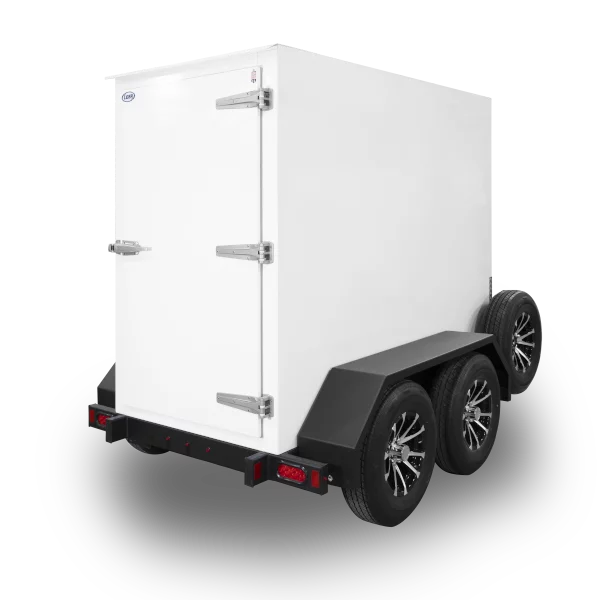

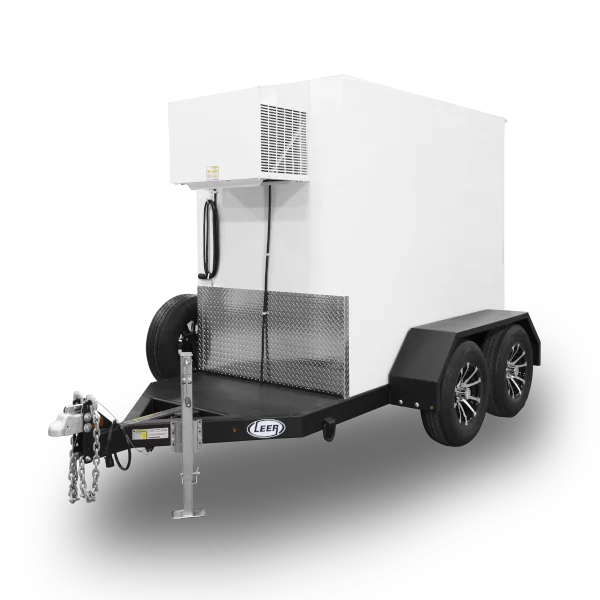

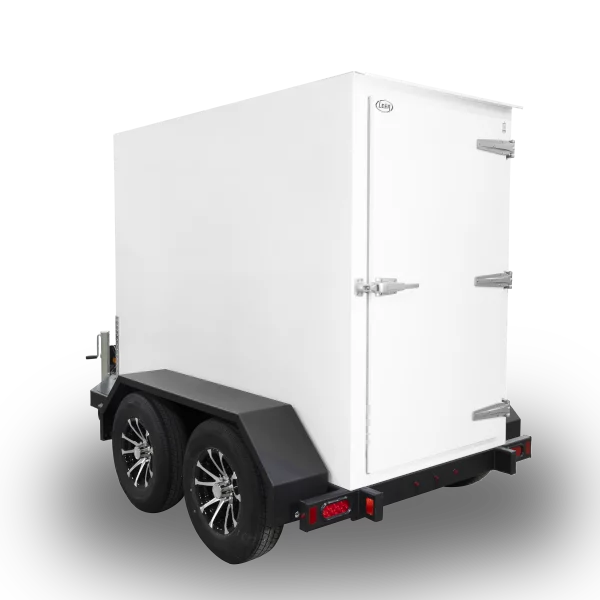

Model 4×8 – Multi-Temp w/ Trailer

Dimensions (W" x D" x H"):
Add to Quote
Standard Model Numbers
Auto Defrost – R404a
4X8T AD
Approx. Interior Cubic Feet
148
Exterior Dimensions (W” x D” x H”)
96 x 48 x 75
Interior Dimensions (W” x D” x H”)
90 x 42 x 68
Door Opening Dimensions (W” x H”)
37.60 x 65.60
(X°F - X°F)
-4 to +40
Control
Electronic Control
Factory Presets
Cooler, Freezer, or Ice
Temperature Adjustable
Yes
Voltage (V/Hz)
120/60
Min. Circuit Required (Amps)
20
Trailer Available
Yes
GVWR (lbs.)
7,000
Axles (lbs.)
3,500 (Dual)
Payload (lbs.)
4,800
Construction
3X5 Steel Tube
Overall Length
13'-9"
Hitch Ball Size
2-5/16"
Adjustable Height Hitch
Yes
Brakes (Each Axle)
12" Electric Drum
Spare Tire
Included
Compressor (HP)
1
Compressor Type
Scroll Compressor
Refrigerant
R404a
Auto Defrost Fan Type
ECM Fans
Certifications
NSF, UL, ULC, DOT, NATM

Model 4×8 – Multi-Temp w/ Trailer

Videos

Learn more about Leer Multi-Temp Trailers construction, and cooling types.

Multi-Temp Refrigerated Transport Trailer Overview – 5×10 & 4×8

From Factory Floor to the Front of the Store – How An Ice Merchandiser is Made!

Model 4×8 – Multi-Temp w/ Trailer

Product Literature

Spec sheets, warranty information, certifications, and other documents to help review or specify this model.

Refrigerated Trailers 4×8 w/ Trailer Cutsheet

Warranty Quick Reference Guide

Refrigerated Trailer Warranty

Refrigerated Transport Certifications, Approvals, Agency Listings

Model 4×8 – Multi-Temp w/ Trailer

User Manuals

Owner and operating manuals for Leer Multi-Temp Trailers

Refrigerated Trailer User Manual

Model 4×8 – Multi-Temp w/ Trailer

Support Documents

Maintenance guides, refrigerant information, troubleshooting resources, and other materials that support long-term operation.

No data was found

Model 4×8 – Multi-Temp w/ Trailer

Drawings

View dimensional drawings for footprint, door opening, and placement planning.
Related Products

Model 4×8 – Multi-Temp

Multi-Temp Trailers

VIEW PRODUCT

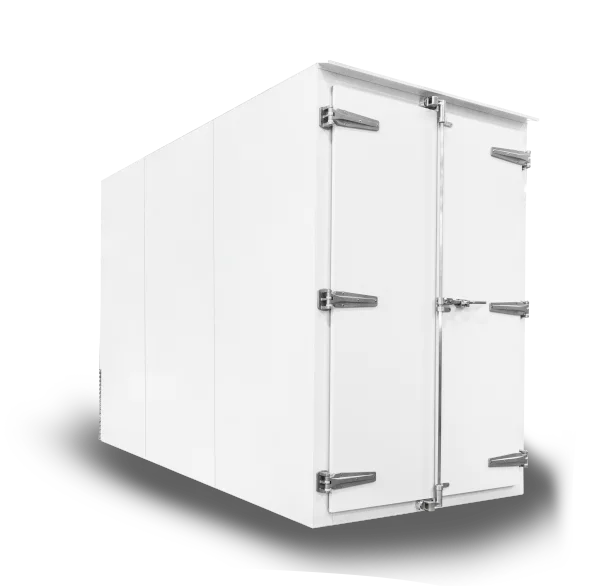

Model 5×10 – Multi-Temp

Multi-Temp Trailers

VIEW PRODUCT

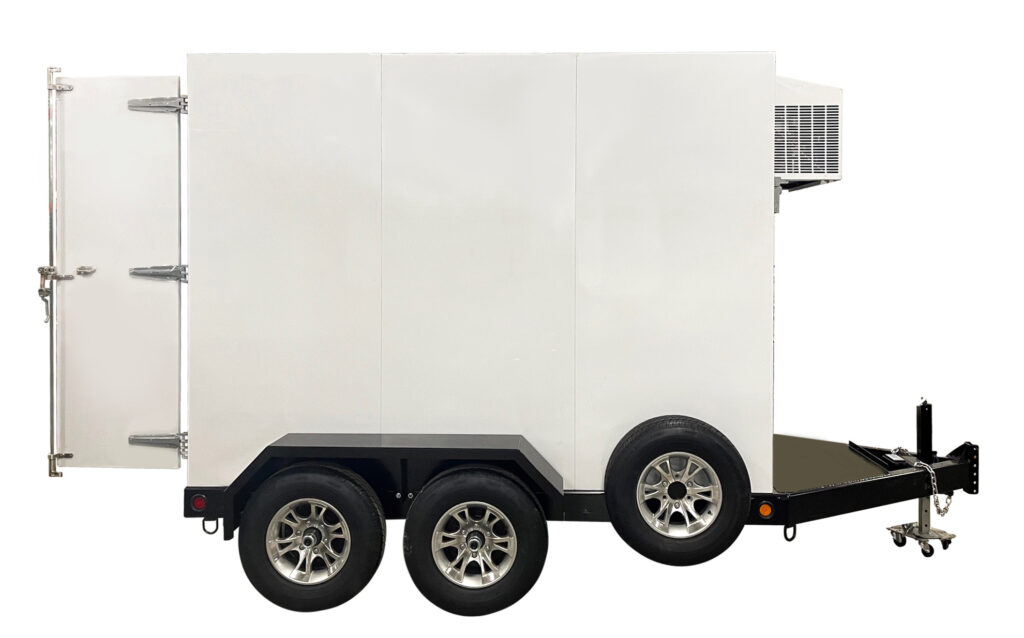

Model 5×10 – Multi-Temp w/ Trailer
