Multi-Temp Trailers

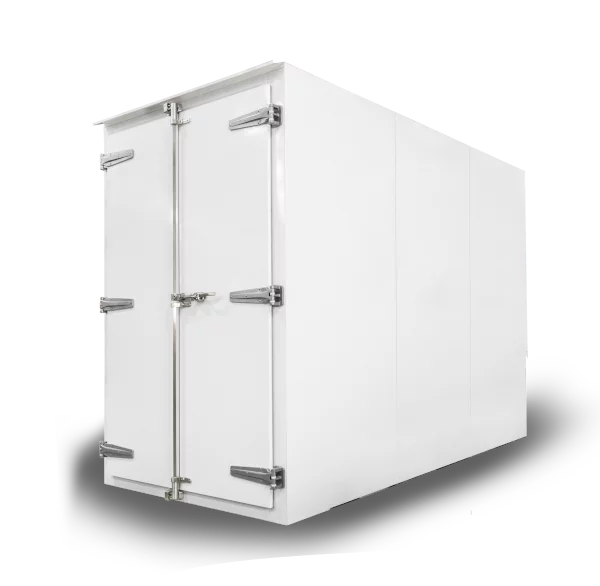

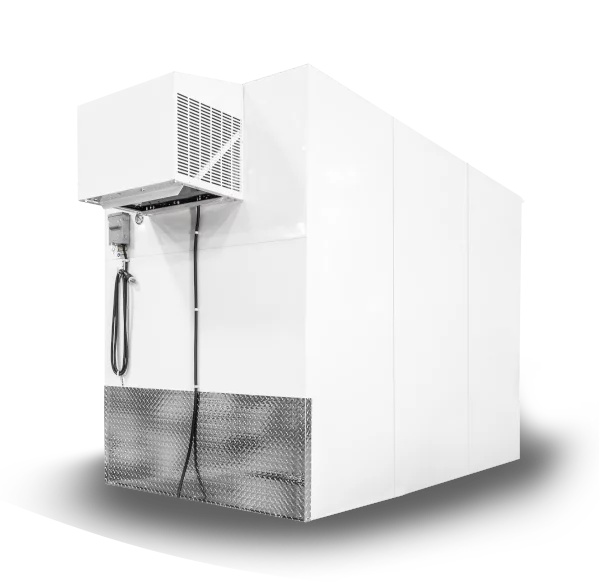

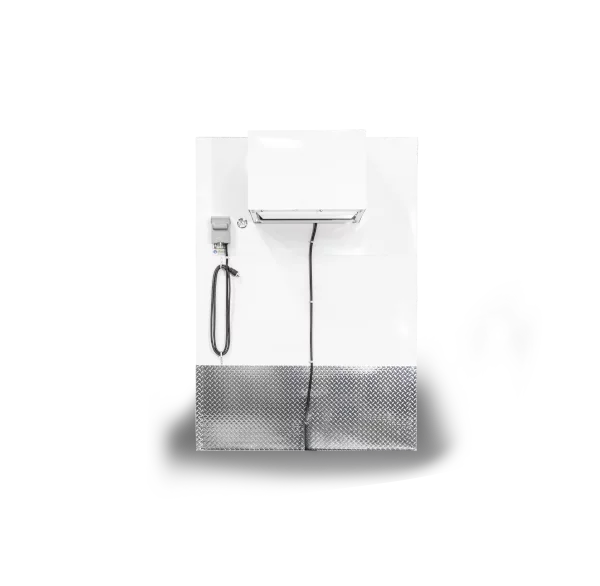

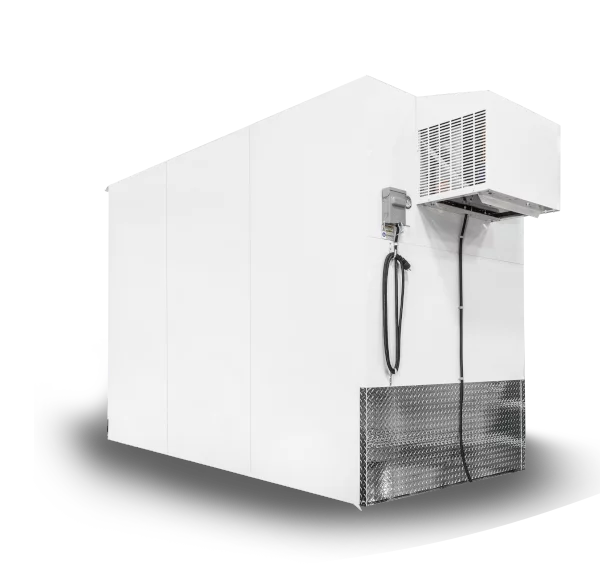

Model 5×10 – Multi-Temp

Dimensions (W" x D" x H"):
Standard Model Numbers
Auto Defrost – R404a
5x10 AD
Approx. Interior Cubic Feet
285
Exterior Dimensions (W” x D” x H”)
120 x 60 x 88
Interior Dimensions (W” x D” x H”)
114 x 54 x 80.75

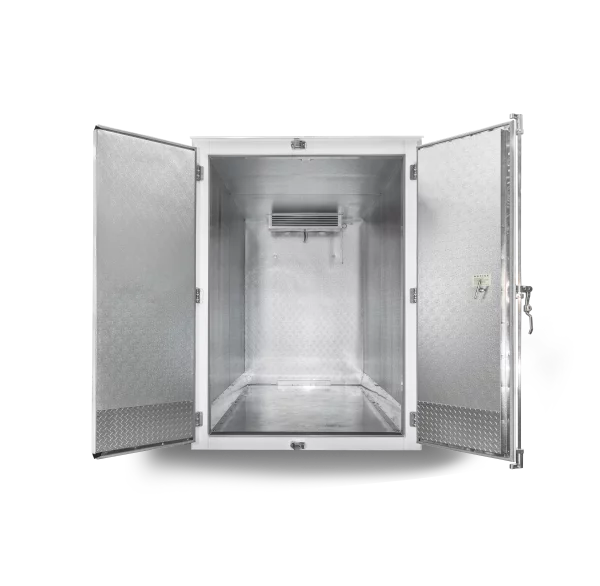

Door Opening Dimensions (W” x H”)
78.70 x 50.75
(X°F - X°F)
-4 to +40
Control
Electronic Control
Factory Presets
Cooler, Freezer, or Ice
Temperature Adjustable
Yes
Voltage (V/Hz)
120/60
Min. Circuit Required (Amps)
20
Trailer Available
Upon Request
GVWR (lbs.)
See 5x10 w/ Trailer
Axles (lbs.)
See 5x10 w/ Trailer
Payload (lbs.)
See 5x10 w/ Trailer
Construction
See 5x10 w/ Trailer
Overall Length
See 5x10 w/ Trailer
Hitch Ball Size
See 5x10 w/ Trailer
Adjustable Height Hitch
See 5x10 w/ Trailer
Brakes (Each Axle)
See 5x10 w/ Trailer
Spare Tire
See 5x10 w/ Trailer
Compressor (HP)
1.25
Compressor Type
Scroll Compressor
Refrigerant
R404a
Auto Defrost Fan Type
ECM Fans
Certifications
NSF, UL, ULC

Model 5×10 – Multi-Temp
