Multi-Temp Trailers

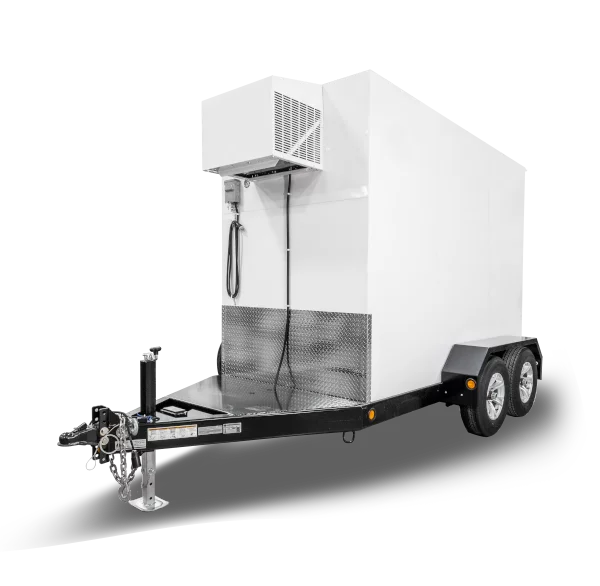

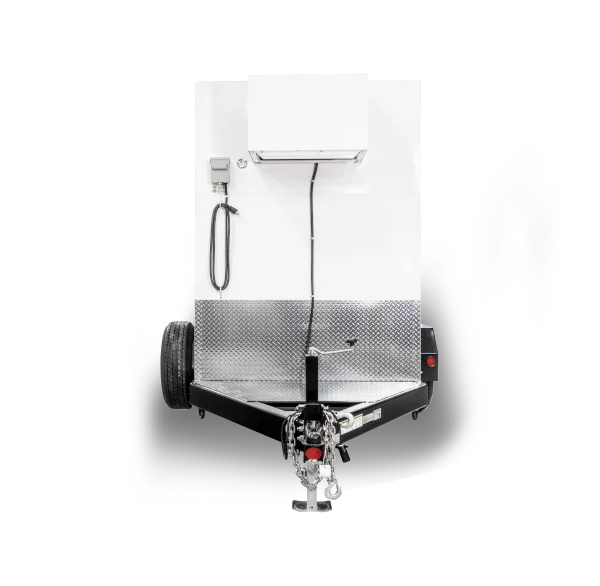

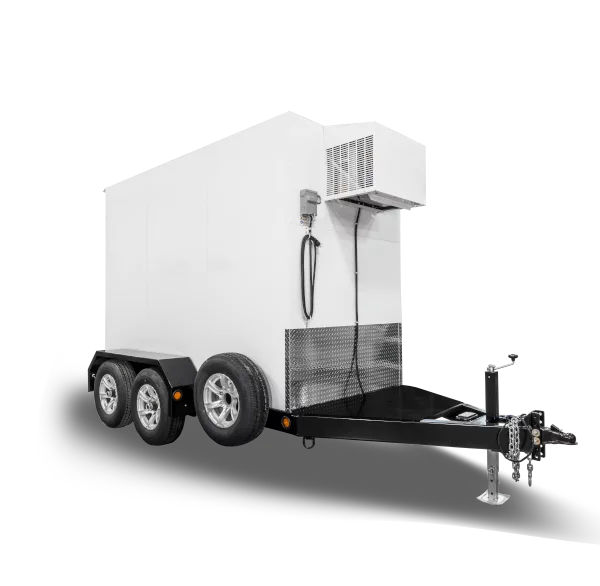

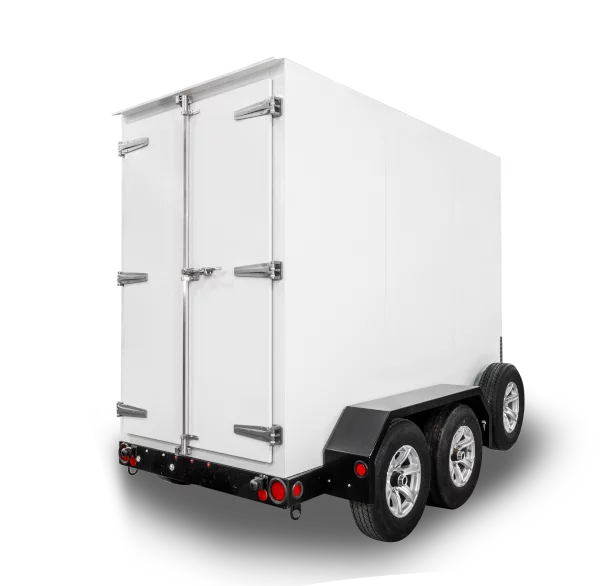

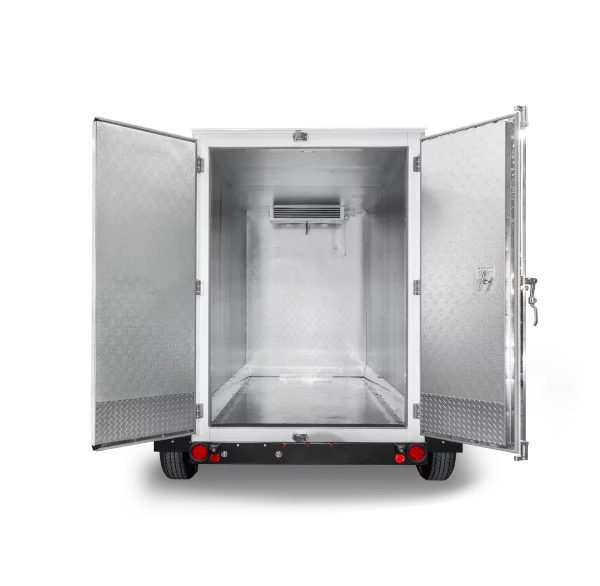

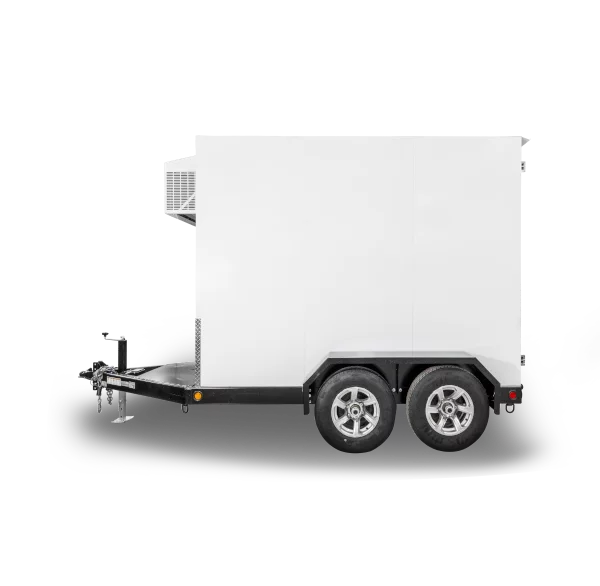

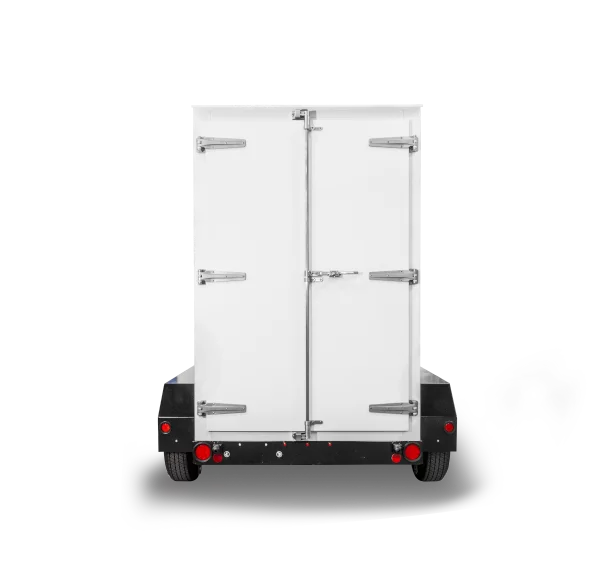

Model 5×10 – Multi-Temp w/ Trailer

Dimensions (W" x D" x H"):
Add to Quote
Standard Model Numbers
Auto Defrost – R404a
5x10T AD
Approx. Interior Cubic Feet
285
Exterior Dimensions (W” x D” x H”)
120 x 60 x 88
Interior Dimensions (W” x D” x H”)
114 x 54 x 80.75
Door Opening Dimensions (W” x H”)
78.70 x 50.75
(X°F - X°F)
-4 to +40
Control
Electronic Control
Factory Presets
Cooler, Freezer, or Ice
Temperature Adjustable
Yes
Voltage (V/Hz)
120/60
Min. Circuit Required (Amps)
20
Trailer Available
Yes
GVWR (lbs.)
9,995
Axles (lbs.)
5,200 (Dual)
Payload (lbs.)
7,000
Construction
3X5 Steel Tube
Overall Length
16'
Hitch Ball Size
2-5/16"
Adjustable Height Hitch
Yes
Brakes (Each Axle)
12" Electric Drum
Spare Tire
Included
Compressor (HP)
1.25
Compressor Type
Scroll Compressor
Refrigerant
R404a
Auto Defrost Fan Type
ECM Fans
Certifications
NSF, UL, ULC, DOT, NATM
